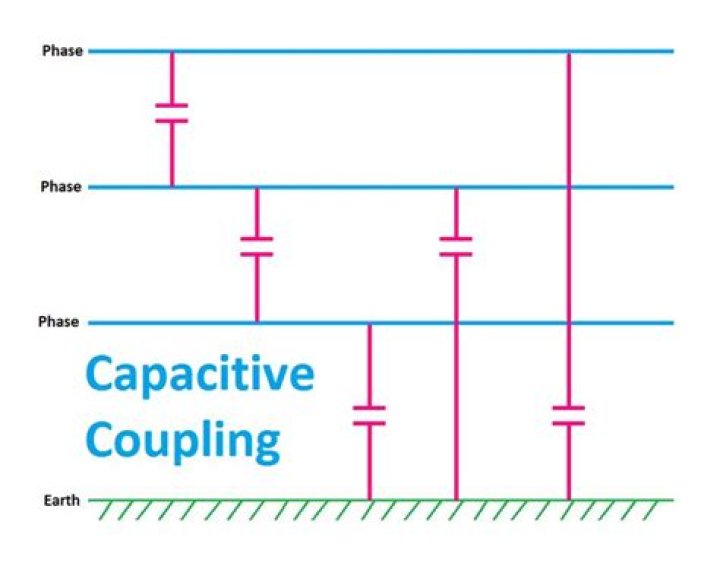

Electric field coupling (also called capacitive coupling) occurs when energy is coupled from one circuit to another through an electric field. As we shall see, this is most likely to happen when the impedance of the source circuit is high.
What is capacitive and inductive coupling?
Capacitive coupling uses electric fields. Inductive coupling uses magnetic fields. Generally capacitive coupling is used in very low power applications, while inductive coupling doesn’t really have a power limit. Giant power system transformers work by inductive coupling.
How does a capacitor coupling work?
Definition: A capacitor that is used to connect the AC signal of one circuit to another circuit is known as a coupling capacitor. The main function of this capacitor is to block the DC signal and allows the AC signal from one circuit to another.
What is the advantage of capacitive coupling?
The capacitive coupling WPT has many advantages such as simple structure, low electromagnetic interference and transferring with metal barrier. However, it is hard to reduce the impedance of coupling capacitor for sufficient received output voltage in the capacitive coupling WPT.
What is the main purpose of coupling capacitor in amplifier?
In analog circuits, coupling capacitors are extensively used in amplifiers. The voltage bias of a transistor is crucial for normal operation of the amplifier. The role of coupling capacitors is to prevent the incoming AC signal from interfering with the bias voltage applied to the base of a transistor.
What is capacitive coupling clamp?
The capacitive coupling clamp is an instrument used for measuring conducted electromagnetic interference where there is no galvanic connection between the coupling clamp and the measured cables.
What is inductive coupling used for?
Inductive coupling is widely used throughout electrical technology; examples include: Electric motors and generators. Inductive charging products. Induction cookers and induction heating systems.
What is inductive coupling simple?
Definition of inductive coupling
: electrical coupling in which the influence is that of mutual induction usually between two coils close together or wound on a common core.
What happens inductive coupling?
Inductive coupling refers to the phenomenon that exists when a magnetic field created by an electrical current induces an effect on something else. When this happens, the two then become mutually reactive, or coupled, by the inductive effects of the magnetic field.
What are the three types of coupling methods?
The different types of coupling are: Common-mode impedance (galvanic) coupling. Capacitive coupling. Inductive coupling.
How do you calculate capacitive coupling?
Measure, calculate or determine from a manufacturer’s data sheet the input impedance of the circuit to which the coupling capacitor is connected. Multiply this number by 1/10 to find the minimum value of the coupling capacitor’s impedance.
What are the disadvantages of capacitive transducer?
There are some disadvantages of capacitive transducer which are given below,
The capacitive transducers are temperature sensitive.It gives non linear behavior.The output impedance depends upon the frequency used.The capacitance may get changed by dust particle and moisture which produce error.
How can capacitive coupling be reduced?
Reducing capacitive coupling phenomenon can be done by increasing distance, avoiding overlapping circuits or certain connections to ground.
What are all the disadvantages of capacitive level measurement?
➨It is very much sensitive to changes in environmental conditions such as temperature, humidity etc. This will affect the performance. ➨The measurement of capacitance is hard compare to measurement of resistance. ➨Capacitive proximity sensor are not so accurate compare to inductive sensor type.
Why are capacitors used?
Capacitors are useful to reduce voltage pulsation. When the high voltage is applied to the parallel circuit, the capacitor is charged, and on the other hand, it is discharged with the low voltage. While electricity flowing out is alternating current, most electronic circuits work with direct current.
Which coupling is used in op amp?
Operational amplifiers (op-amps) use internal capacitive coupling between stages.
How do capacitors affect frequency?
Capacitive reactance of a capacitor decreases as the frequency across its plates increases. Therefore, capacitive reactance is inversely proportional to frequency.
